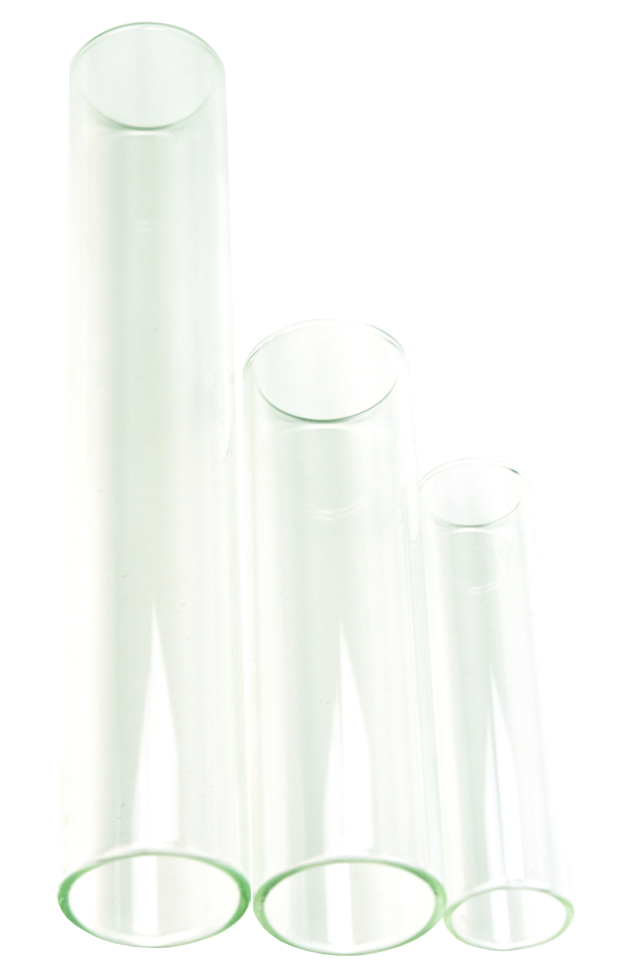

Roux glass 50 cc

Roux glass.

Dimensions
ROUXA026: 10 cc
ROUXC026: 30 cc
ROUXD026: 50 cc

All parts on a row
1: ROUX0045 Grip – big with head
2: ROUX0005 Grip without transport hook
3: ROUX0007 Fixing nut for grip
4: ROUX0035 Compression spring for grip
5: ROUX0043 Little bullet below distribution regulator
8: ROUX0033 Tenstion button (adjustment button)
9: ROUX0048C Distribution regulator 1/5 for 30 cc
9: ROUX0049 Distribution regulator ¼ for 10 cc
9: ROUX0049A Distribution regulator ½ for 30 cc
9: ROUX0049B Distribution regulator ¾ for 30 cc
10, 16, 17: ROUX0008 Piston set 20 cc + needle ring
10, 16, 17: ROUX0009 Piston set 30 / 50 cc + needle ring
11: ROUX0027 Metal casing 10 cc
11: ROUX0030 Metal casing 20 cc
11: ROUX0042 Screw in distribution regulator
11: ROUX0046 Metal casing 30 cc
11: ROUX0050 Metal casing 50 cc
12: ROUXA026 Glass 10 cc
12: ROUXC026 Glass 30 cc
12: ROUXD026 Glass 50 cc
13: ROUX0032 Outer bar 10 cc
13: ROUX0040A Outer bar 30 cc (3/4 adjustment)
13: ROUX0040B Outer bar 30 cc (1/2 adjustment)
13: ROUX0041 Inner bar 50 cc
14: ROUX0022 Inner bar 10 cc
15: ROUX0031 Closing plate piston 10 cc
15: ROUX0031A Closing plate piston 30 / 50 cc
18: ROUX0036 Connection part screw 10 cc
18: ROUX0037 Connection part Luer Lock 10 cc
18: ROUX0038 Connection parts Luer Lock 30 / 50 cc
18: ROUX0039 Connection part screw 30 / 50 cc
19: ROUX0051 Leaf spring below transport hook
20: ROUX0058 Screw through transport hook
21: ROUX0047 Transport hook

Other parts:
ROUX0002: Fixing distribution regulator
ROUX0021: Needle ring rubber
ROUX00V1: Outer bar 8 mm black extended syringe
ROUX00V2: Inner bar extended syringe 30 cc
ROUX00V3: Inner bar extended syringe 50 cc
ROUX00V4: Casing 20 mm black extended syringe
